VOXLS 40 Series
Nikon’s large-envelope system range combines metrology grade, granite-based manipulator construction with a large scanning volume, multi-source flexibility, dual detector functionality and an extensive range of CT acquisition modes, enabling them to excel in any inspection environment, from R&D labs to the shop floor.
Key benefits
- Automation-ready for the Shop Floor
- Dual Detector Flexibility
- Highly Configurable Line-up
- Large Scanning Envelope
- Metrology Grade Manipulator
- Multi-source Functionality
Voxls40 Key features
Automation-ready for the Shop Floor
When combined with an integrated robotic loader and the Nikon Automation OPC UA Interface, our large envelope systems are automation ready for closed-loop inspection at high speed in a Quality 4.0 production line environment.
Dual Detector Flexibility
A choice of industry-leading, flat panel detectors with small pixel sizes and fast exposures, combined with Nikon’s unique CLDA, enables high-throughput CT and DR for all part types, plus advanced scatter correction for high-density parts.
Highly Configurable Line-up
With 8 different X-ray sources, 7 detectors, 3 granite base lengths and 2 manipulator constructions to choose from, housed in either a single-piece cabinet, panelised room or pre-existing shielded enclosure, you’ll find a system configuration to match your requirements.
Large Scanning Envelope
With up to 4-position panel shift and synchronous Y-axis source and detector movement, the maximum available scanning envelope can accommodate samples up to 1000 mm swept diameter and over 1500 mm tall.

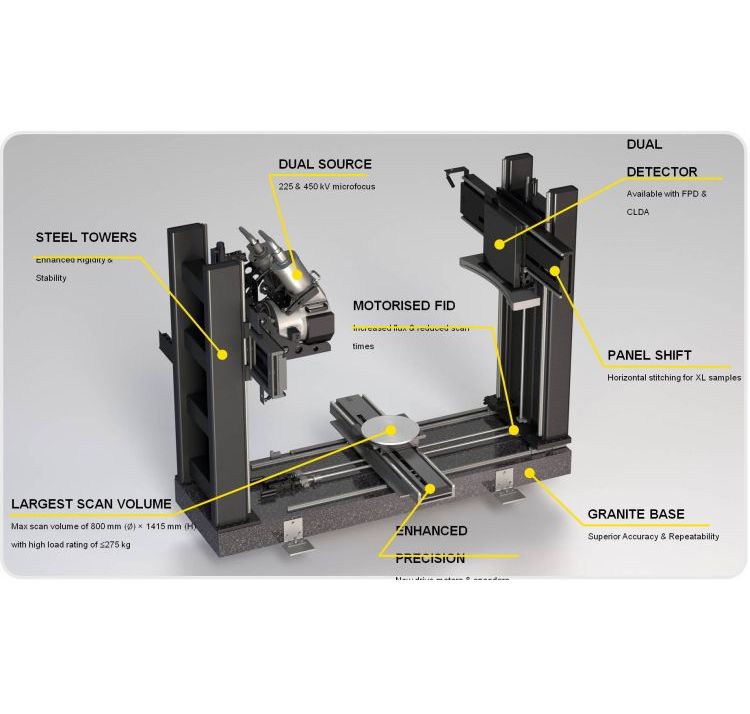

Metrology Grade Manipulator

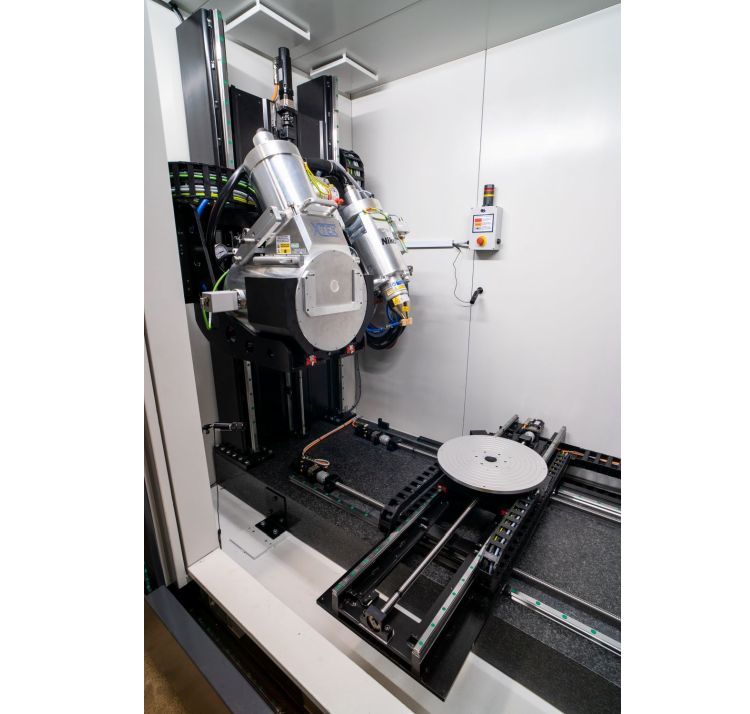

Our granite-based manipulators are combined with rigid towers and precision motors and encoders. The resulting construction ensures superior mechanical and thermal stability, leading to enhanced positional accuracy and repeatability.
Multi-source Functionality
Select up to 3 X-ray sources from Nikon’s extensive microfocus range to ensure you have the optimum combination of penetrative power, resolution and scan speed for all your applications.
Voxls40 Specifications
Nikon X-ray Sources
| Microfocus source | Max.kV | Max. power | Focal spot size range |
| 180 kV Transmission target | 180 kV | 20 W | 1 μm up to 3 W 20 μm at 20 W |
| 225 kV Reflection target | 225 kV | 225 W | 3 μm up to 7 W 225 μm at 225 W |
| 225 kV Multi-Metal target | 225 kV | 225 W | 3 μm up to 7 W 225 μm at 225 W |
| 225 kV Rotating.Target 2.0 | 225 kV | 450 W | 10 μm up to 30 W 160 μm at 450 W |
| 320 kV Reflection target | 320 kV | 320 W | 30 μm up to 30 W 320 μm at 320 W |
| 450 kV Reflection target | 450 kV | 450 W | 80 μm up to 50 W 320 μm at 450 W |
| 450 kV Rotating Reflection Target | 450 kV | 450 W | 80 μm up to 100 W 120 μm at 450 W |
Detectors
Max.frame rate
| Detectors | Field of View | Pixel Size | @ 1x1 bining | @ 2x2 bining |
| Varex XRD 1611 | 4000 × 4000 pixels | 100 μm | 3.75 fps | 7.5 fps |
| Varex XRD 1620 | 2000 × 2000 pixels | 200 μm | 3.75 fps | 7.5 fps |
| Varex XRD 1621 EHS | 2000 × 2000 pixels | 200 μm | 15 fps | 30 fps |
| Varex XRD 4343CT | 2850 × 2850 pixels | 150 μm | 15 fps | 30 fps |
| Varex XRD 4343N | 2850 × 2850 pixels | 150 μm | 15 fps | 30 fps |
| Nikon Metrology CLDA | 2048 pixels | 415 μm | 50fps |
Manipulator
# Axes 7
Max. Scan Volume 800 mm (Ø) × 1415 mm (H)
Max. FID 1520 mm
FID Type Motorised moveable
Max. Sample Mass 275 kg

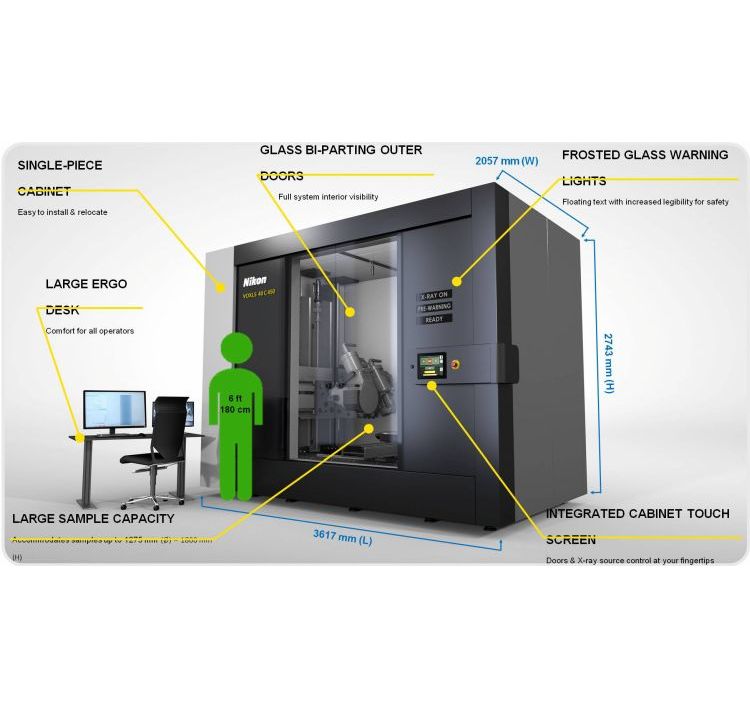

Cabinet
Length 3617 mm
Width 2057 mm
Height 2743 mm
Mass 20,000 kg
